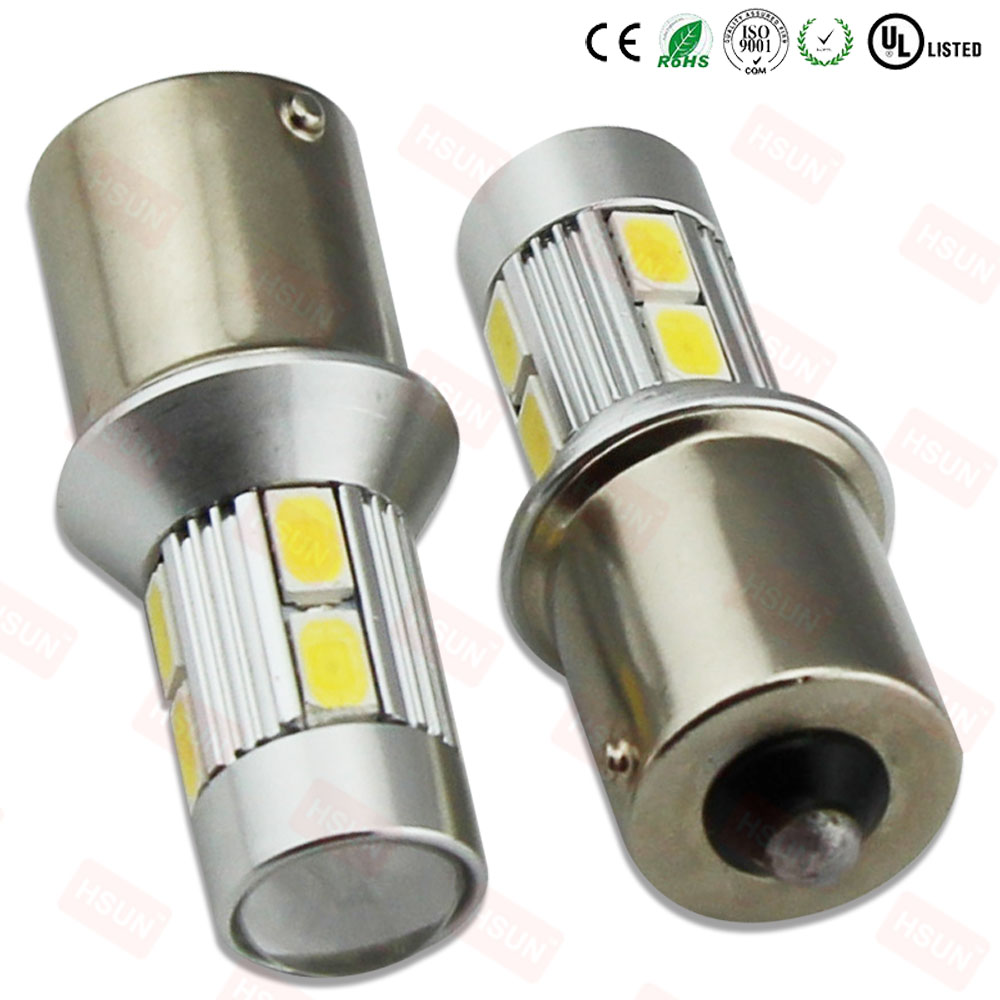

HSUN-10 LED SMD5630 With Lens (BAZ15D-P21/4W-1122)

Base: BAZ15D P21/4W 1122

LED Quantity: 10 pcs

Operating Voltage Range: 9-32VDC

Luminous Flux: 320 LM

Operating Current: 100mA (Strong) / 40mA (Dim)

Power Consumption:1.2W (Strong) / 0.48W (Dim)

Application: Tail Light,Brake Light

Description

Item Name: HSUN-10 LED SMD5630 With Lens (BAZ15D-P21/4W-1122)

Operating Voltage Available:

Unit: VDC

9-32VDC
Base: BAZ15D P21/4W 1122

Operating Current:

Unit: mA

100 mA (Strong) / 40 mA (Dim)
LED Chip: LED SMD5630

Power Consumption:

Unit: W

1.2 W (Strong) / 0.48 W (Dim)
Brand: HSUN

Luminous Flux:

Unit: Lumen

320 LM
Beam Pattern: 360° Operating Temperature Range: -30°C - + 85°C
Color: white,blue,red,green,amber ,pink, purple etc, all colors are available

Storage Temperature Range: -40°C to +100°C --- Up to 50,000 hour life span

Remark: we can produce with all kind of led chips as customers require ,please contact HSUN


1. White,blue,red, green,amber,pink,purple etc,all colors are available

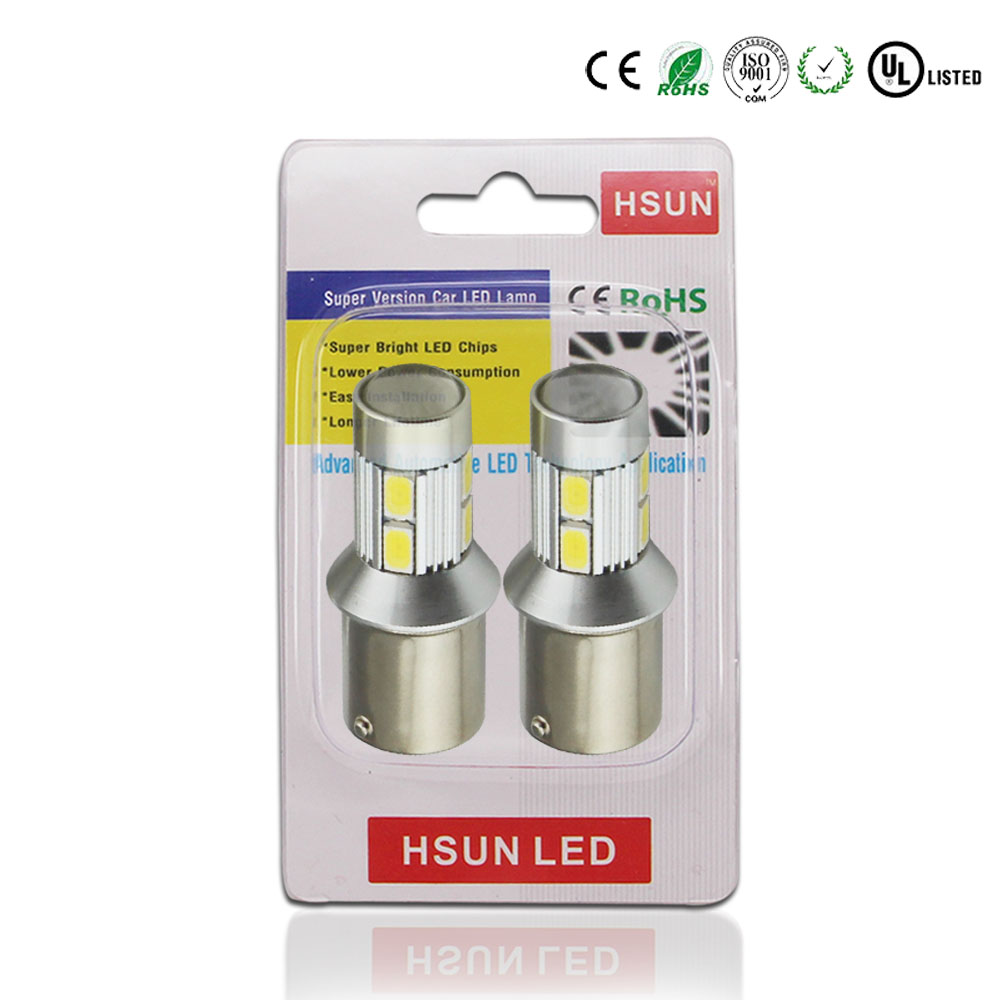

2. Packing Specification: Anti-Electrostatic Polybag or Blister card
3. Warranty Time: 24 months
4. Terms of payment: T/T, Western Union, PayPal and Escrow
5. Usage: Tail Light,Brake Light
