Home > All Products > Car LED > LED Brake Light & Tail Light > BAZ15D P21/4W 1122 LED > HSUN-33 LED SMD5630 With Lens (BAZ15D-P21/4W-1122)

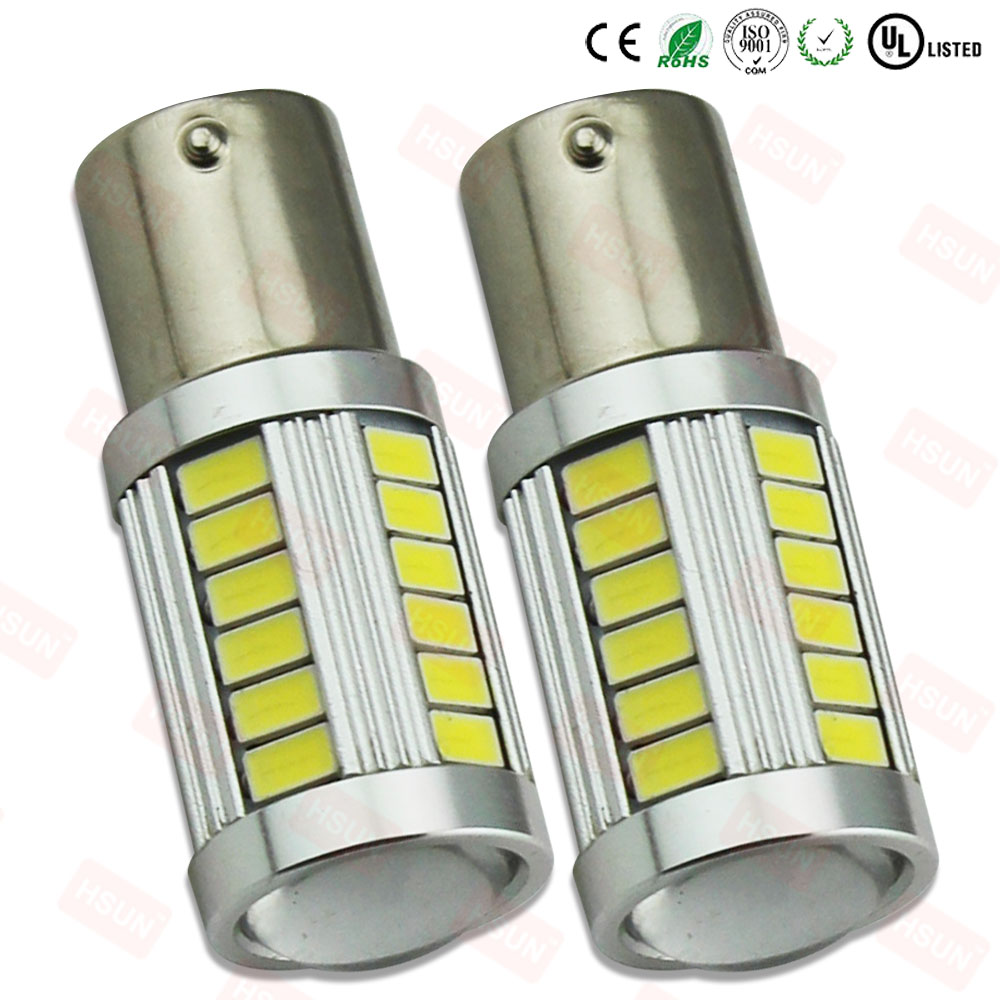

HSUN-33 LED SMD5630 With Lens (BAZ15D-P21/4W-1122)

Base: BAZ15D P21/4W 1122

LED Quantity: 33 pcs

Operating Voltage Range: 12-24VDC

Luminous Flux: 825 LM

Operating Current: 310mA (Strong) / 120mA (Dim)

Power Consumption:4.34W (Strong) / 1.68W (Dim)

Application: Tail Light,Brake Light

Description

Item Name: HSUN-33 LED SMD5630 With Lens (BAZ15D-P21/4W-1122)

Operating Voltage Available:

Unit: VDC

9-32VDC
Base: BAZ15D P21/4W 1122

Operating Current:

Unit: mA

310 mA (Strong) / 120 mA (Dim)
LED Chip: LED SMD5630

Power Consumption:

Unit: W

4.34 W (Strong) / 1.68 W (Dim)
Brand: HSUN

Luminous Flux:

Unit: Lumen

825 LM
Beam Pattern: 360° Operating Temperature Range: -30°C - + 85°C
Color: white,blue,red,green,amber ,pink, purple etc, all colors are available

Storage Temperature Range: -40°C to +100°C --- Up to 50,000 hour life span

Remark: we can produce with all kind of led chips as customers require ,please contact HSUN


1. White,blue,red, green,amber,pink,purple etc,all colors are available

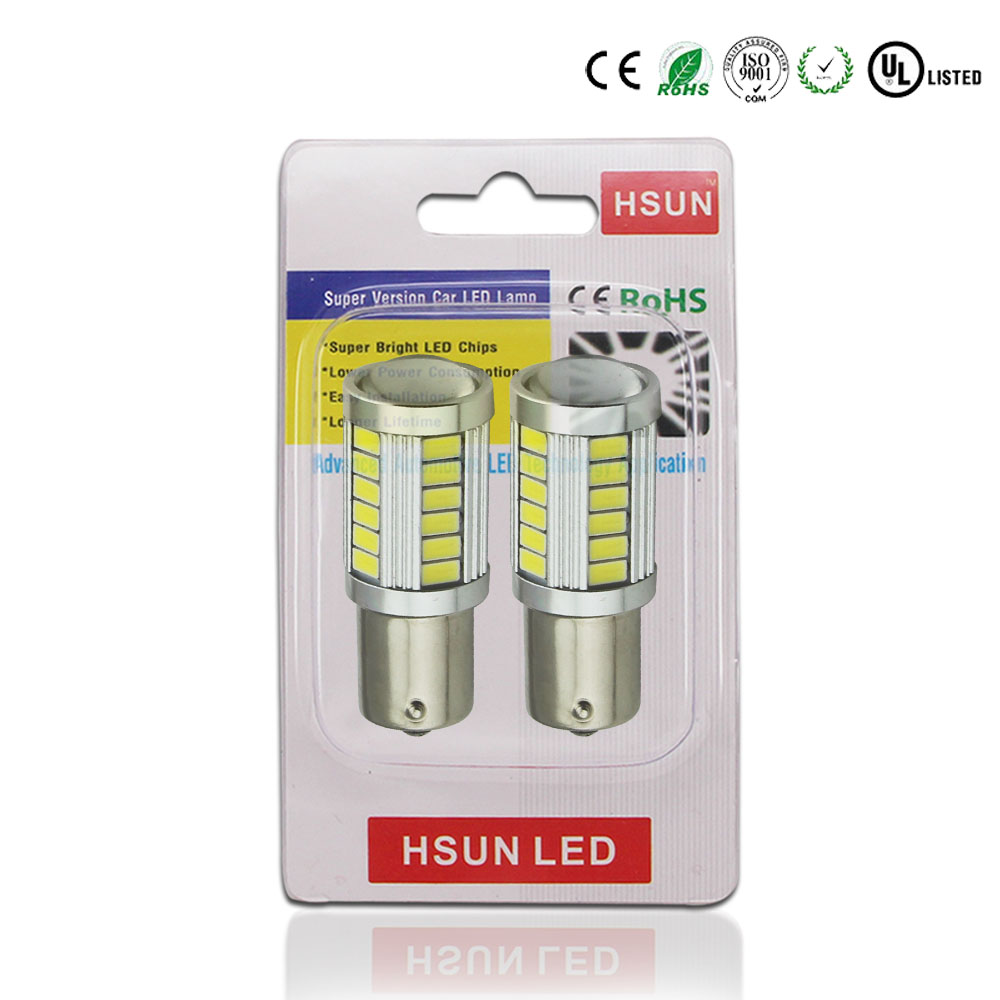

2. Packing Specification: Anti-Electrostatic Polybag or Blister card
3. Warranty Time: 24 months
4. Terms of payment: T/T, Western Union, PayPal and Escrow
5. Usage: Tail Light,Brake Light
